MCL 压电马达驱动超高真空兼容位移台

Name: MCL 压电马达驱动超高真空兼容位移台
Brand: MCL
SKU: MadMotor™-UHV

< >

参考价：面议

品牌：MCL 型号：MadMotor™-UHV 样本：点我免费下载样本

北京欧兰科技发展有限公司

获取底价

在线客服

电话咨询

常见问题

MCL 压电马达驱动超高真空兼容位移台价格？可以做哪些实验？
MCL 压电马达驱动超高真空兼容位移台参数？配套的耗材试剂？
MCL 压电马达驱动超高真空兼容位移台操作规程？使用注意事项？

查看同类光学位移台仪器

型号	品牌	PIPES指数
QF系列	卓立汉光	8.1
Leica LMT260 XY Scanning Stage	徕卡	8.1
通用高性能运动控制器	创谱仪器	7.8

参数

自动程度：电动位移台	行程：10毫米	台面尺寸：60x60毫米
步进电机：压电陶瓷电机	主体材料：铝	台面承载：6公斤

产品介绍

Features

UHV compatible
Travel range: 10mm
Sensor resolution: 500nm
Proprietary Mad Motor™ technology
Mad-Drive™ DSP controller
LabVIEW compatible

Typical Applications

Precision alignment in UHV
Sample and probe positioning
UHV sample transfer

Product Description

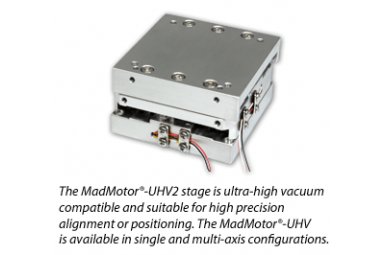

The MadMotor™-UHV is a precision, piezo motor driven, micropositioning system for high precision alignment over long travel ranges. The MadMotor™-UHV stages use our proprietary MadMotor™ piezo motor technology allowing travel up to 10mm per axis with high resolution and excellent repeatability. Optional eddy current sensors provide 500nm sensitivity over the entire travel range.

Leveraging Mad City Labs extensive experience in engineering and manufacturing ultra-high vacuum (UHV) instrumentation, the MadMotor™-UHV is vacuum compatible to 1 x 10^-11 mbar. Our experienced engineering staff have carefully designed the MadMotor™-UHV stages to account for the rigorous requirements for UHV operation. Mad City Labs' practical experience with UHV instrumentation informs our choice of materials, with only the best materials that meet our practical and technical criteria making the grade. The MadMotor™-UHV stages have been designed to withstand the rigors of sample transfer that can often damage more delicate piezo motor designs. In addition, our MadMotor™-UHV stages are able to withstand extensive periods of baking with temperatures up to 150°C. As a result, the MadMotor™-UHV is a robust and reliable stage as required by UHV applications.

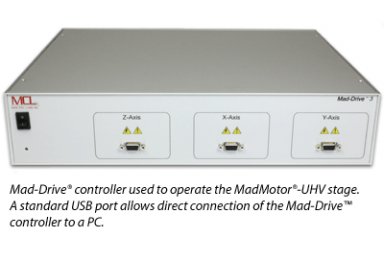

The MadMotor™-UHV includes the Mad-Drive™ which is a 1, 2, or 3 axis piezo motor driver with an integrated DSP and USB interface. The Mad-Drive™ can be programmed to perform complex motion functions via the MadMotor™ DLL interface (supplied). Unlike other piezo motors the MadMotor™ DLL allows the user to treat the MadMotor™-UHV as a simple stepper motor with variable step size and stepping distance. The Mad-Drive™ controller is LabVIEW compatible and the system is provided with LabVIEW motion control examples. Optional wireless joystick control is also available. The MadMotor™-UHVstages are designed for flange mount or freestanding configurations and are compatible with a variety of Mad City Labs vacuum nanopositioning systems. The MadMotor™-UHV can be customized for your application. Contact our engineering staff for more information.

Technical Specifications
Range of motion (per axis)	10 mm
Sensor Resolution (optional)	500 nm
Step Size (minimum)	100 nm
Maximum Speed	1 mm/sec
Available configurations	1, 2 or 3 axis
UHV compatibility	1 x 10^-11 mbar
Bakeable temperature	150°C
Recommended max. load*	6 kg
Body Material	Aluminum
Stage motor	MadMotor™ piezo motor
Controller	Mad-Drive™
* Larger load requirements should be discussed with our engineering staff.
