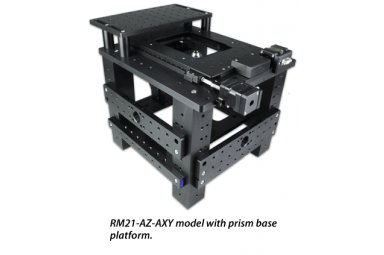

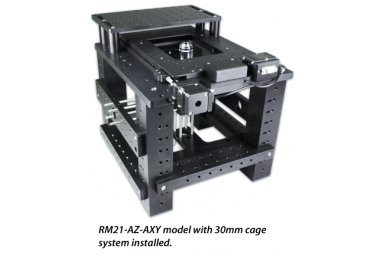

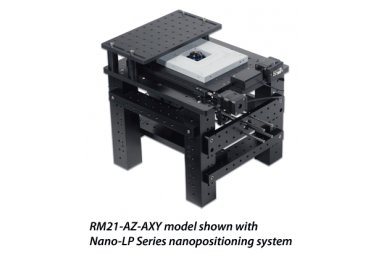

MCL单分子成像RM21™显微镜平台
参考价：$100万-150万
AI Agent
- MCL单分子成像RM21™显微镜平台价格？
- MCL单分子成像RM21™显微镜平台可以做哪些实验？
- MCL单分子成像RM21™显微镜平台参数？
- MCL单分子成像RM21™显微镜平台配套的耗材试剂？
- MCL单分子成像RM21™显微镜平台操作规程？
- MCL单分子成像RM21™显微镜平台使用注意事项？
参数
| 产地类别：进口 | 供应商性质：总代理 | 产品类型：倒置荧光显微镜 |
| 激发光源：高压汞灯 | 价格范围：100万-150万 | 仪器结构：落射式荧光显微镜 |
产品介绍
Applications
| Advantages
|
Product Description |
| The RM21™ is designed as an adaptable microscopy platform which may be configured for a wide variety of microscopy techniques. The design approach to the RM21™ is unlike conventional optical microscopes. The RM21™ allows direct access to all of the optical pathway and has been engineered for precision alignment in all three axes. The RM21™ is compatible with 30mm and 60mm cage systems and is designed to be configured on a standard optical table. The RM21™ has been designed for stability and is nanopositioner ready. These attributes make the RM21™ an ideal platform for innovative instrument development and single molecule microscopy. The RM21™ has three axes of precision motion. The objective lens holder (z-axis) is precision aligned with the optical axis of the platform and accomodates a single objective lens. The motorized lens positioner uses our proprietary intelligent control for low drift and high performance and has 50mm travel with 95nm step size. A fixed objective lens option is also available for maximum stability. Precision motion in X and Y can be achieved with manual XY micro-positioning (-MXY models) or automated XY micropositioning (-AXY models). All XY micropositioning stages travel 25mm per axis and are engineered for nanopositioning compatibility. The -AXY models employ our proprietary intelligent control. All automated axes may be ordered with optional optical encoders to provide displacement readouts. The RM21™ is suitable for applications such as optical and magnetic tweezers, AFM integration and fluorescence microscopy. We offer a number of standard options including a TIRF Module that allows users to effortlessly shift between epifluorescence/TIRF/HILO microscopy techniques and a TIRF Lock™ to maintain the illumination angle. A wide range of customizations, such as increased ranges of motion, are also available. The RM21™ is nanopositioning ready and compatible with the Nano-Cyte® and Mad City Labs nanopositioners. Highlights Three axes of precision motionFixed objective lens or automated objective lens positioning availablePrecision aligned three dimensional grid with over 200 tapped holesTIRF Module and TIRF Lock™ options availableAdjustable, precision aligned shelves and breadboardsCompatible with SM1/30mm & 60mm cage systemsPrecision manufactured base platforms for 45° prism mirror & SM1/30mm cage systemVibration damping feet with removable foot brackets TIRF microscopy optionsA typical application of the RM21™ microscope is single molecule fluorescence microscopy. A standard option available with the RM21™ is the TIRF Module, which provides simple adjustment of the TIR excitation beam to achieve epifluorescence or TIR illumination of the sample and all angles in between (HILO). The TIRF Module controls the angle of illumination and the focusing of the excitation beam onto the back focal plane of the objective lens. The TIRF Module is fully compatible with all models of the RM21™ and may be used in conjunction with Mad City Labs nanopositioning systems and the TIRF Lock™ option.The TIRF Lock™ comprises a quadrant photodiode (QPD) head, electronic controller and LabVIEW based software. Once a user has set up TIR illumination and establishes a desired sample Z position, the TIRF Lock™ keeps the sample in the focal plane by measuring the displacement of the exiting TIRF beam and maintaining that position via software feedback control of the sample positioner. The TIRF Lock™ is fully compatible with Mad City Labs nanopositioning systems. The RM21™ microscope when combined with the TIRF Module and TIRF Lock™ is an excellent instrument for single molecule microscopy offering versatility and stability. Compatible Motion Control Software Packages:       |
Technical Specifications | |
| Tapped Hole Size | 1/4"-20 or M6 |
| Tapped Hole Spacing | 1" or 25mm |
| Micropositioning Axes | X, Y, Z |
| Range of motion (XY) | 25mm |
| Range of motion (Z) | 50mm |
| Vernier gradations (-MXY) | 1μm |
| Step Size (-AZ and/or -AXY models) | 95nm |
| Micropositioning Controller | Micro-Drive® |
| Digital Interface | USB2.0 |
| Precision aligned shelves | 6 |
| Side breadboards | 3 |
| Sliding breadboard | 1 |
| Foot brackets | 4 |
| Base platform | 2 |
| Body Material | Anodized Aluminum |
RM21™ Models AvailableAll models available in imperial (-I) or metric (-M).Supported lens threads: RMS, M25, M26, M27, M32 Side breadboards compatible with SM1/30mm/60mm cage systems Nano-Cyte® compatible model
Available options Custom options |
Model ordering |
Additional Information | ||
RM21™ Catalog Pages | Drawing of RM21™ | Drawing of RM21™-Metric |
Related Products |
|
MCL单分子成像RM21™显微镜平台信息由北京欧兰光视科技有限公司为您提供，如您想了解更多关于MCL单分子成像RM21™显微镜平台报价、型号、参数等信息，欢迎来电或留言咨询。
