Instant AFM and nanoprobe instrumentation - just add science! View our AFM Video Tutorial.

Please click on a heading to view a topic. Click the heading a second time to collapse the topic.

Introduction

Name: MCL MadPLL®原子力显微镜控制器
Brand: MCL
SKU: MadPLL®

MadPLL® is a powerful instrument package that allows the user to create an inexpensive, high resolution resonant scanning probe microscope using Mad City Labs nanopositioning systems. In short, MadPLL® can be used to create an “instant” closed loop AFM or NSOM at a fraction of the cost of commercial systems. MadPLL® is suitable for nanoscale characterization and nanoscale fabrication applications such as optical antennas, nano-optics, semiconductors, data storage, and more.

MadPLL® has been specifically designed for resonant probes such as tuning forks and Akiyama probes. In addition MadPLL® is fully compatible with Mad City Labs’ high resolution nanopositioning systems which makes it easy for users to build a scanning probe microscope with a flexibility that cannot be achieved with other commercial systems. The seamless integration of hardware combined with the built-in automated control of MadPLL® means that you can concentrate on getting results.

MadPLL® is ideal for research and teaching laboratories offering high performance, versatility, simplicity and excellent value.

FeaturesLow costSoftware, PLL controller, sensor amplifier, and probe boards includedEasy and flexible configurationFully self contained - no external signals requiredAutomated software controlAuto PCC controlAuto Q Calculation, resonant frequency detectionIntegrated Z axis PI control loopFully compatible with Mad City Labs positioning products

What is MadPLL®?

MadPLL® is an integrated solution that includes the digital phase lock loop (PLL) controller, software, sensor amplifier board and resonant probe mounting board. Simply add your Akiyama probe or tuning fork to the probe board to create a powerful force sensor for scanning probe measurements.

The MadPLL® package includes the MadPLL® digital PLL controller, sensor board, probe board, and MadPLL® software. Ease of integration with resonant probes and Mad City Labs' low noise nanopositioning systems give users the ability to create high performance, low cost NSOM and AFM instruments.

The PLL controller contains a digitally controlled proportional integral (PI) loop designed to work seamlessly with Mad City Labs’ nanopositioning systems. The addition of closed loop nanopositioners adds to the high performance of MadPLL®. Additional options are available for multi-axis closed loop nanopositioning control.

The PLL controller has three operational modes: self oscillation, PLL driven, and (lock-in) DDS driven. The probe can be controlled in constant excitation or constant signal mode. Measured outputs from the controller include changes in frequency, amplitude or phase shift.

The digital MadPLL® controller has three operational modes: self oscillation, PLL driven, and DDS driven. The probe can be controlled in constant excitation amplitude or constant signal amplitude. Changes in frequency, amplitude, or phase are measured for Z control.

The MadPLL® package includes a digital phase lock loop (PLL) controller, software, sensor amplifier board, and resonant probe mounting board. MadPLL® includes five (5) each of the vertical, horizontal, Akiyama, and blank probe boards. In addition, each unit is shipped with five (5) tuning forks. Additional probe boards and tuning forks can be purchased separately.

The sensor amplifier and probe board assemblies are compact and can be fitted to existing instrumentation. The probe board simply plugs into the sensor amplifier board. The sensor amplifier board can be mounted to a precision positioner such as a closed loop nanopositioning system. The probe board has been designed for use with tuning forks and Akiyama probes. These probes are easy to mount and alignment free.

MadPLL® includes a sensor amplifier board and probe boards. The probe boards are designed for use with tuning forks, Akiyama probesand Accutune probes.

MadPLL® Software

MadPLL® software simplifies the control of your scanning probe microscope. All of the functions of MadPLL® are fully automated but accessible via individual software control. Among the software features are automated setup, configuration control, auto-Q calculation and automatic parasitic capacitance compensation (PCC) control. These included features are designed to simplify setup and accelerate the data acquisition process. MadPLL® software integrates seamlessly with Mad City Labs' AFMView™ software. AFMView™ software is part of our complete SPM development system.

Application - AFM Video Tutorial

Instant AFM - just add science!

MadPLL® can be used to create a customized, high resolution Akiyama probe or tuning fork atomic force microscope (AFM) at a fraction of the cost of commercial systems. MadPLL® has been designed to directly interface with Mad City Labs’ low noise single and multi-axis nanopositioning systems, making it possible to create a fully closed loop AFM. The AFM described is suitable for both research and teaching environments and can be further customized for vacuum operation. MadPLL® is suitable for nanoscale characterization and nanoscale fabrication applications such as optical antennas, nano-optics, semiconductors, data storage, and more.

Mad City Labs AFM Assembly Tutorial - How to Build an "Instant" Atomic Force Microscope

Video Bill of MaterialsSPM-M KitMadPLL® Instrument Packagedigital phase lock loop (PLL) controllerAkiyama probe mounting boardsensor amplifier boardNano-SPM200 nanopositioning stage (XY)Nano-OP30 nanopositioning stage (Z)3 axis closed loop Nano-Drive® controllerZ axis open loop/close loop switch (OCL option)Adapter plate between preamplifier and Nano-OP30Adapter plate to Thorlabs MT1 micropositionerXY and Z coarse motion: standard stages available from optical component suppliersProbe: Akiyama probeHardware: standard optical mounting fixturesPC: Windows XP/Vista/7 (32 bit or 64 bit compatible)This configuration is a highly flexible, low cost, multi-axis, closed loop Akiyama or tuning fork AFM called the SPM-M Kit. All Mad City Labs nanopositioning systems have low noise PicoQ® sensors and closed loop feedback control. Using MadPLL® the user can create a high performance scanning probe instrument at low cost.Additional options available from Mad City Labs Quartz Crystal Tuning ForksAFMView software (included with SPM-M Kit)Other configurations of 3 axis closed loop nanopositioners* (e.g. Nano-HS3 Series, Nano-OP30 (Z), Nano-H Series (XY))Vacuum compatible nanopositionersLED IlluminatorTungsten tip etching kit* All Mad City Labs nanopositioning systems include the Nano-Drive® controller which is fully LabVIEW/C++/MATLAB compatible.AFM configurations typically achieve Z resolutions of 0.5nm (rms) and a scanning frequency of 1Hz. Higher resolutions and scan speeds can be achieved using different nanopositioner combinations. All Mad City Labs nanopositioning systems ahave low noise PicoQ® sensors and closed loop feedback control.Recommended additional items Vibration isolation tableCoarse Z-axis approach (manual or automated)

Image Gallery

Seeing is Believing!

The images below were acquired using MadPLL® with Mad City Labs closed loop nanopositioning systems.

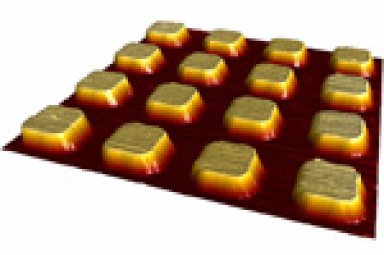

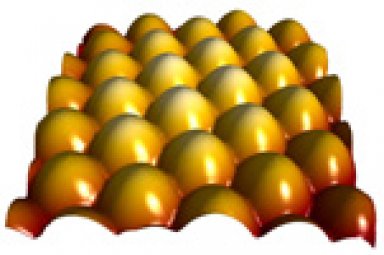

Calibration grid(100nm tall lines, 2μm apart)10μm x 10μmUnidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-HS3 3-axis nanopositioning system.Calibration grid(100nm tall pegs, spaced 2μm apart)10μm x 10μmUnidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-HS3 3-axis nanopositioning system.Fly eye100μm x 100μmBidirectional scanPLL mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)Human hair100μm x 100μmBidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)PMMA pattern, uncured10 μm x 10 μmBidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)Integrated circuit100 μm x 100 μmBidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)Calibration grid40 μm x 40 μmUnidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)Calibration grid(100nm tall, 10μm pitch)70 μm x 70 μmUnidirectional scanPLL mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)Etched structures80 μm x 80 μmBidirectional scanSelf oscillation mode, constant probe signalZ force feedback: frequencyData taken using MadPLL® with Nano-OP30 nanopositioning system (Z-axis), Nano-OP100 nanopositioning system (XY axes)

Technical Specifications

Lock-In AmplifierPhase Shifter0° to 360°Demodulation Bandwidth3 kHz

Phase Lock LoopAuto Range SelectionYESMeasurement Range± 500 HzMeasurement Resolution50 mHz

PreamplifierInput Gain (Attenuator)0x to 1x (16 bit internal DAC)Parasitic Capacitance Compensation (PCC)YESAutomatic PCCYES

Probe Oscillation LoopOperating Modesself oscillationPLL drivenlock-in/DDS drivenAmplitude Control Modesconstant excitationconstant signalAmplitude Setpoint16 bit internal DACAmplitude ControlYES, adjustable PI loop filterInput Voltage Range±10 V(peak)Input Voltage Gain2x to 40xFrequency Range10 kHz to 100 kHzOutput Voltage Range±10 V(peak)

PI Loop Filter (Z-Axis)Integration Time Constantdigitally controlledDigitally Set ParametersYESError Signal Inversion CapabilityYESSensor Signalsfrequencyphaseexcitation amplitudesignal amplitudeCommand Signal16 bit internal DACAutomatic Loop Filter SetupYes, after initializationLoop Output0 to 14V

GeneralSpectrum Analysisamplitude, phaseFeedback Monitor BNCfrequencyphaseexcitation amplitudesignal amplitudeProbe Signal Monitor (BNC)sinewave amplitude probe (diagnostic)Power Supply90 to 260 VAC (50/60 Hz)Controller Dimensions16.75" x 14" x 1.75" (1U)(42.55cm x 35.56cm x 4.45cm)PC ConnectionUSBOperating System32 bit: Windows 2000/XP Pro/Vista/764 bit: Windows XP Pro/Vista/7LabVIEW Software OS32 bit: Windows 2000/XP Pro/Vista/764bit: Windows XP Pro/Vista/7

Additional Information
MadPLL® Brochure	Laser Focus World Article NANOPOSITIONING: Piezo-electric nano-positioners forge low-cost atomic force microscope	AFM Video Tutorial
MadPLL® Sensor Probe Board Drawing
